NG-1 PICKUP

NG-1 is the perfect nylon string guitar pickup choice for guitarists who need a piezo pickup to transfer the natural sound of their instrument.

It's a classical guitar pickup that brings true nylon-string sound without modification to the instrument.

Features

NG-1 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings.

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

NG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

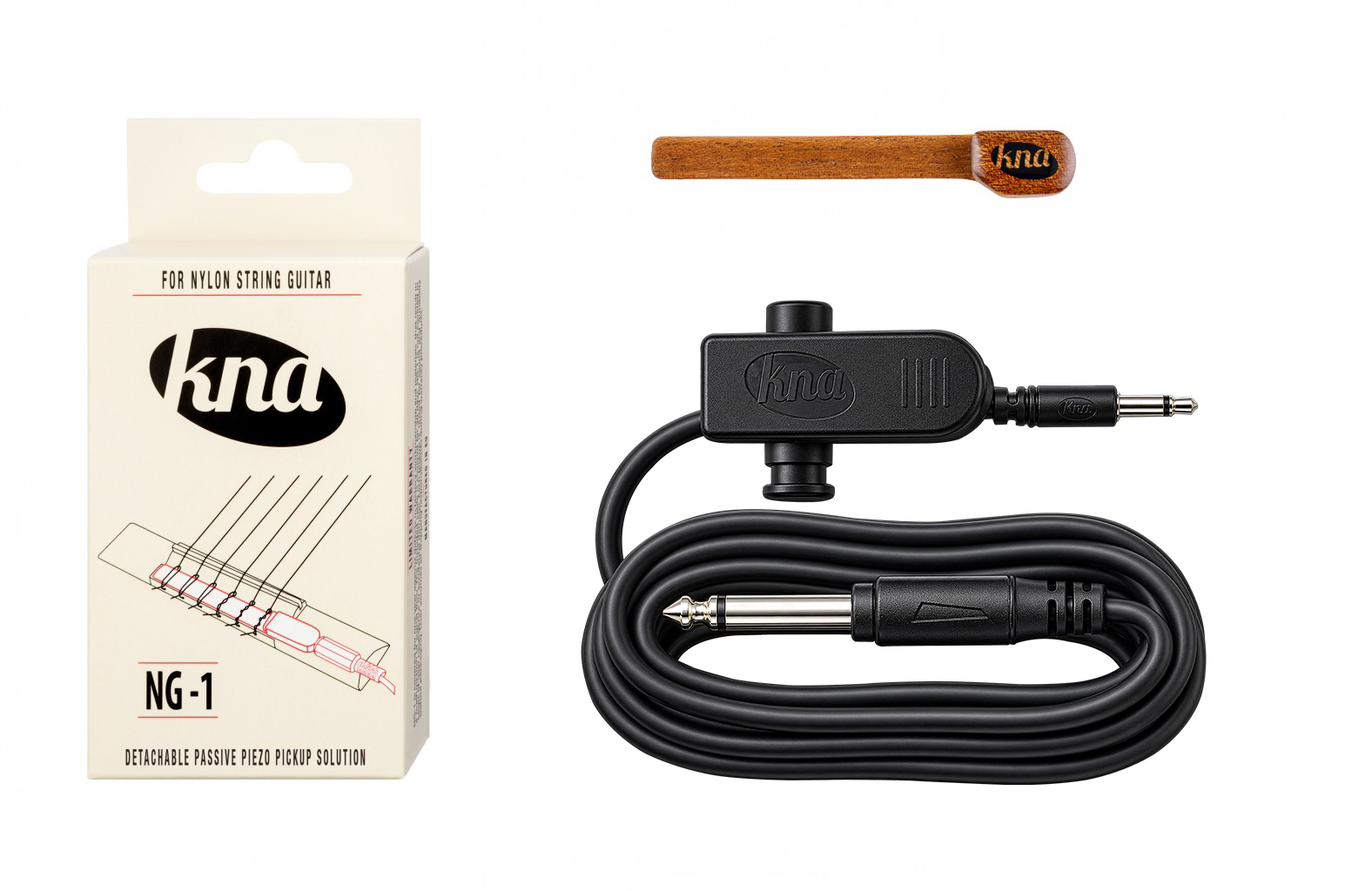

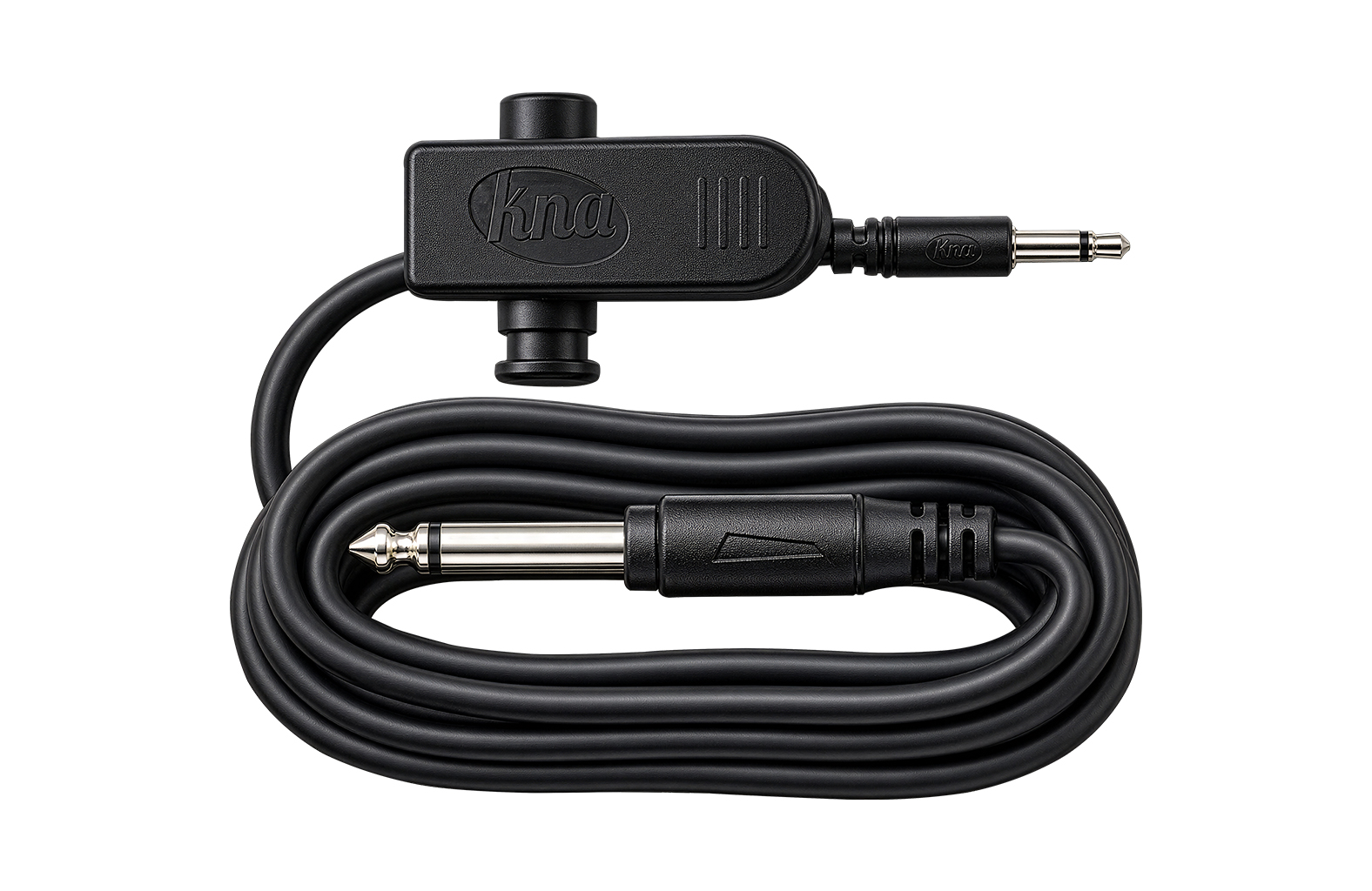

Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.

Follow our installation guide through the following steps:

Loosen the strings of your guitar. Make sure there is enough space under the loops so the pickup can slide through without any pressure.

Slide the pickup under the string loops. Keep it positioned evenly on the tie bar while tightening the strings and retune.

Hold the pickup head securely when attaching and detaching the 1/8" to 1/4" cable.

You are ready to enjoy your new pickup!

Specifications
Weight	3.8g. / 0.137oz
Wood	Mahogany
Maximum Impedance	500 Ω
Cables	3meter / 9'
Measurements
Specified part	Letter	Size in MM (from*)	Size in MM (to*)	Size in INCH (from*)	Size in INCH (to*)
Transducer length	a	76,0	77,0	2,992	3,031
Jack housing length	b	17,3	17,4	0,681	0,685
Total pickup length	c	95,0	-	3,740	-
Transducer width	d	9,4	-	0,370	-
Active signal transfer area length	e	69,1	69,2	2,720	2,724
Transducer thickness	f	2,1	2,2	0,083	0,087
Jack housing height	g	9,2	9,3	0,362	0,366
*Our handmade pickups may vary slightly in size due to the nature of the building
