UP-1 PICKUP

Compact, portable surface-mounted piezo for variety of acoustic instruments


Our lightest and smallest stick-on guitar pickup, the versatile UP-1 passive piezo attaches safely to just about anything that vibrates.


In addition to being a surface-mount guitar pickup, UP-1 can be used for harp, drums, and percussion.

Features

Install with no modification

Install with no modification

Simply stick the pickup on your instrument’s soundboard.

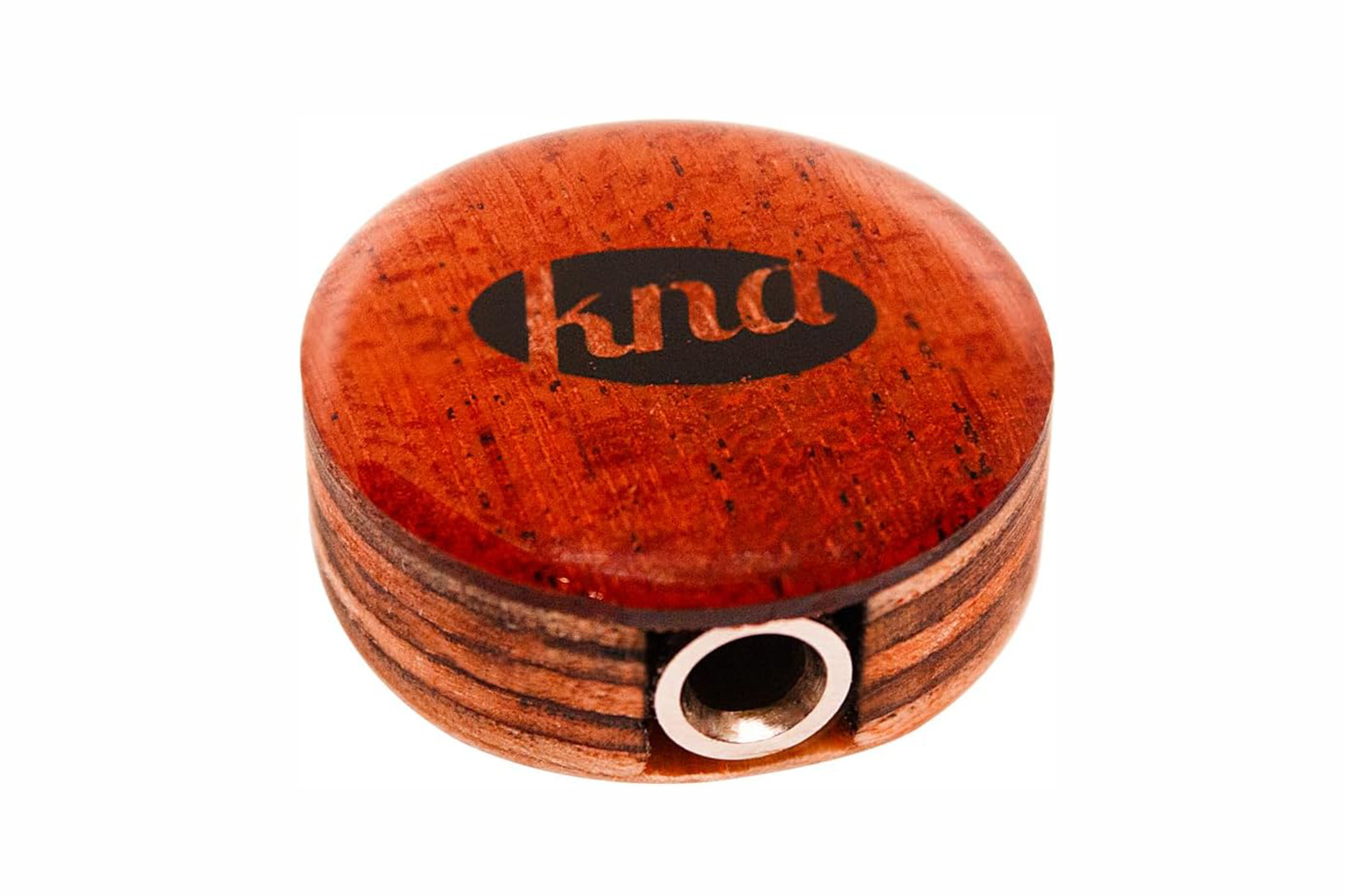

Wooden housing

Wooden housing

The piezo element is encased in laminated birch with an elegant and stylish mahogany top. The lightweight assembly offers maximum tonal sensitivity.

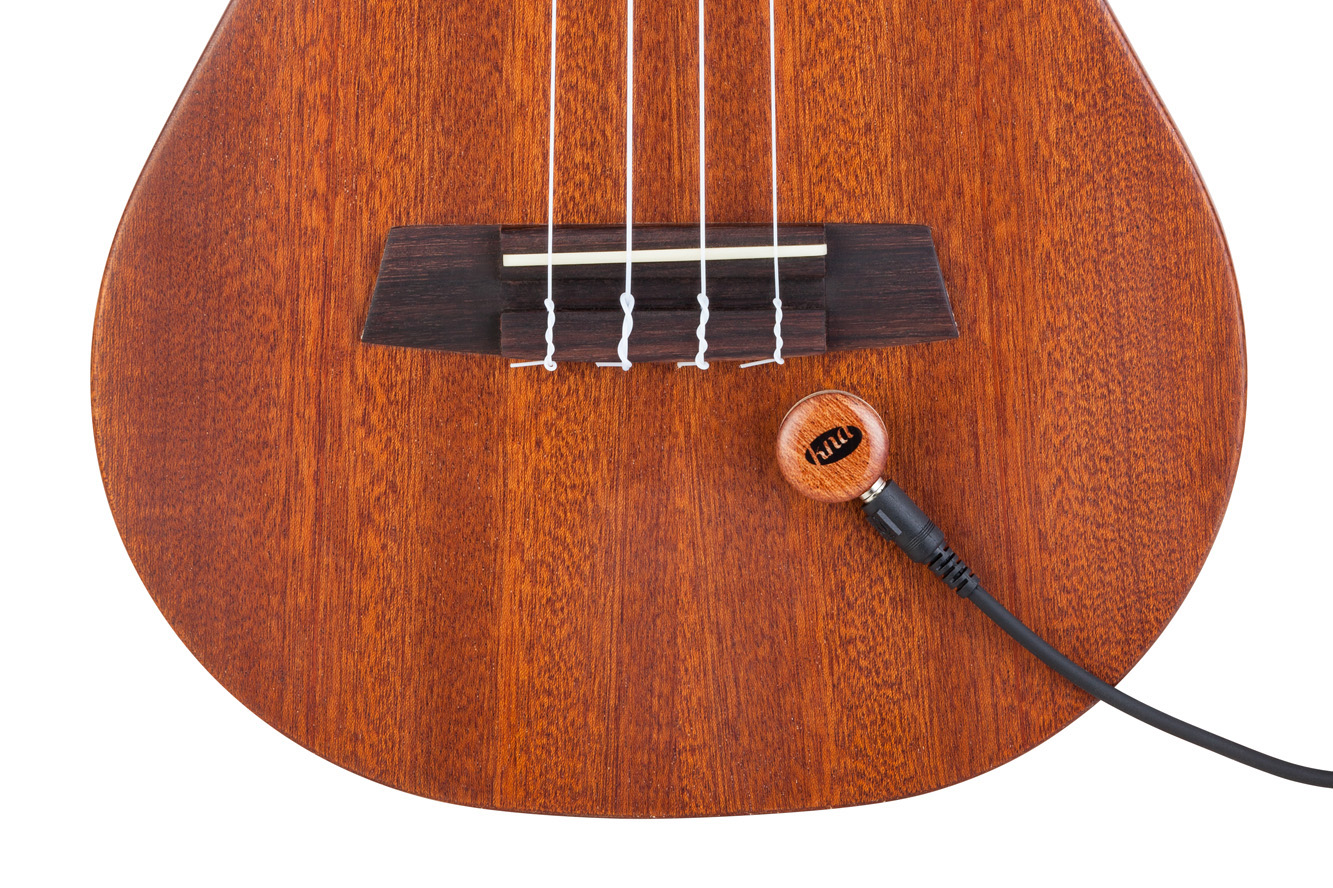

Natural sound

Natural sound

UP-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.



Complete installation set

Complete installation set

The pickup comes with a double-sided adhesive disc and enough PowerTack adhesive for multiple applications, and a detachable 1/8" to 1/4" cable that allows the pickup to remain in place during storage.

Instructions

Follow our installation guide through the following steps:

Video review

Specifications

Specifications
Weight 2.95g / 0.104oz
Wood Laminate birch and mahogany top
Maximum Impedance 800 Ω
Cable 3meter / 9'
Measurements
Specified part Letter Size in MM (from*) Size in MM (to*) Size in INCH (from*) Size in INCH (to*)
Pickup diameter a 24,4 24,5 0,961 0,965
Pickup height b 9,4 9,5 0,370 0,374
Adhesive disk diameter c 20,0 - 0,787 -
Adhesive disk thickness d 1,5 - 0,059 -
*Our handmade pickups may vary slightly in size due to the nature of the building
