SG-Wi Wireless Pickup System

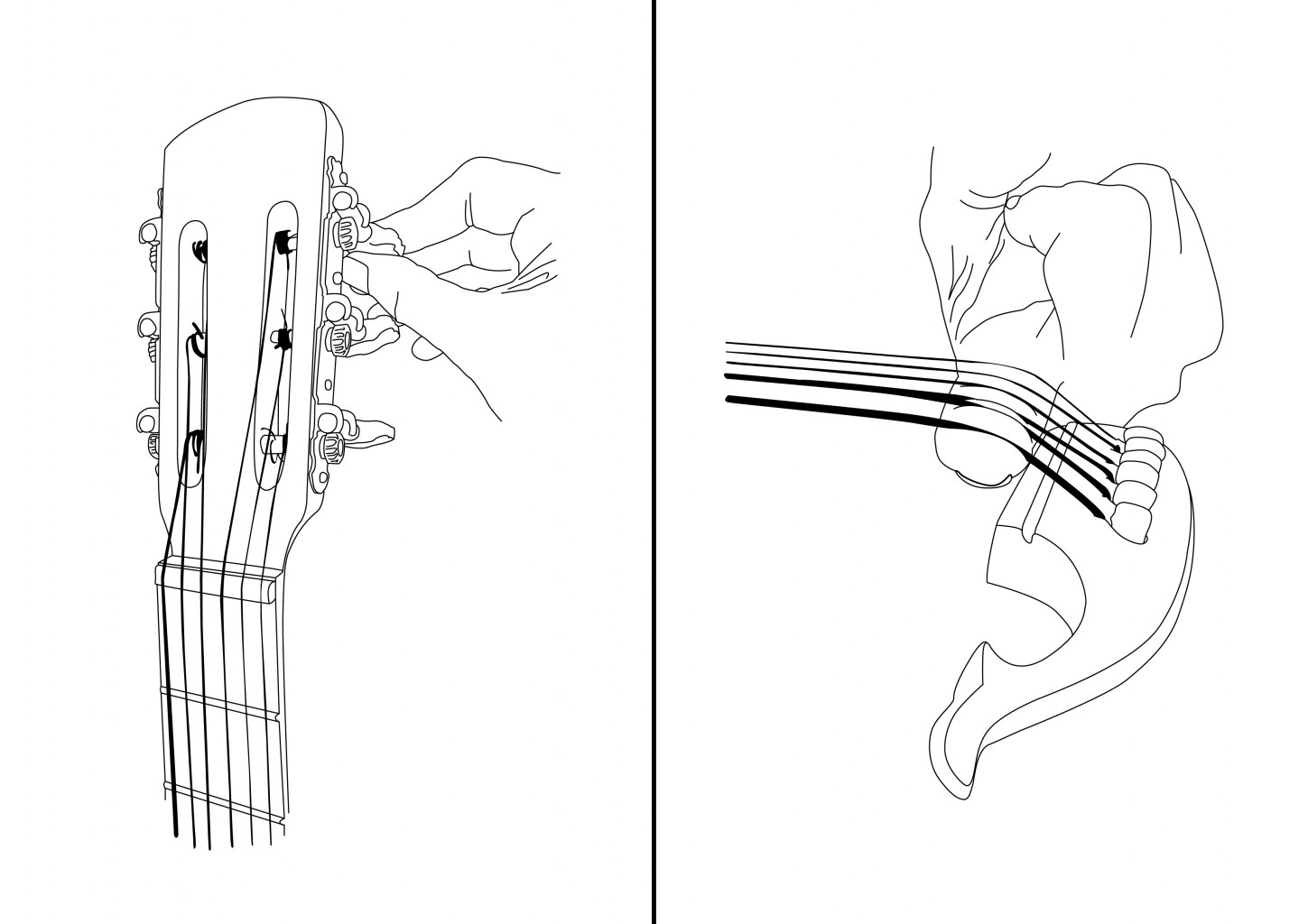

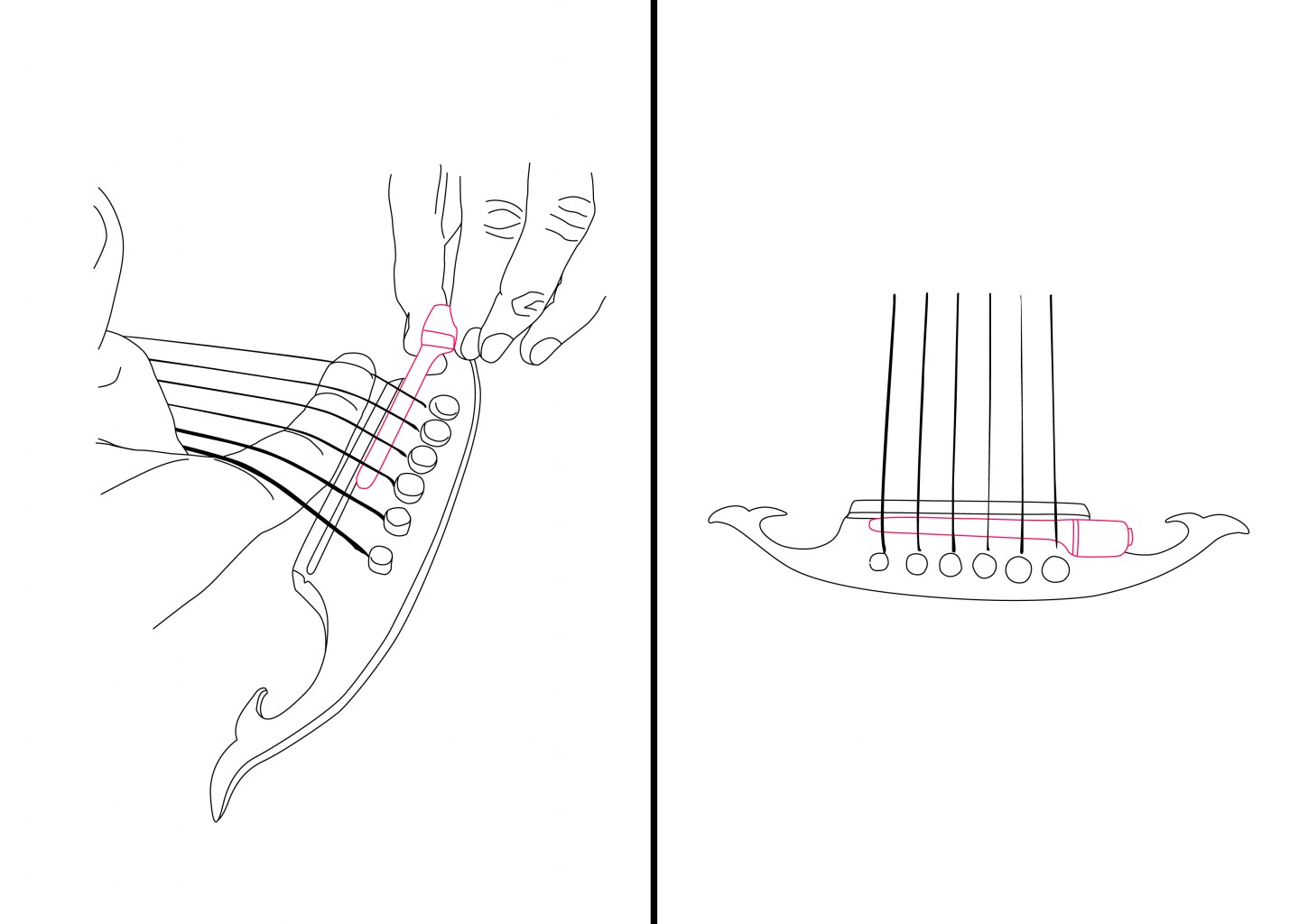

Loosen the strings of your guitar. Make sure there is enough space under the loops so the pickup can slide through without any pressure.

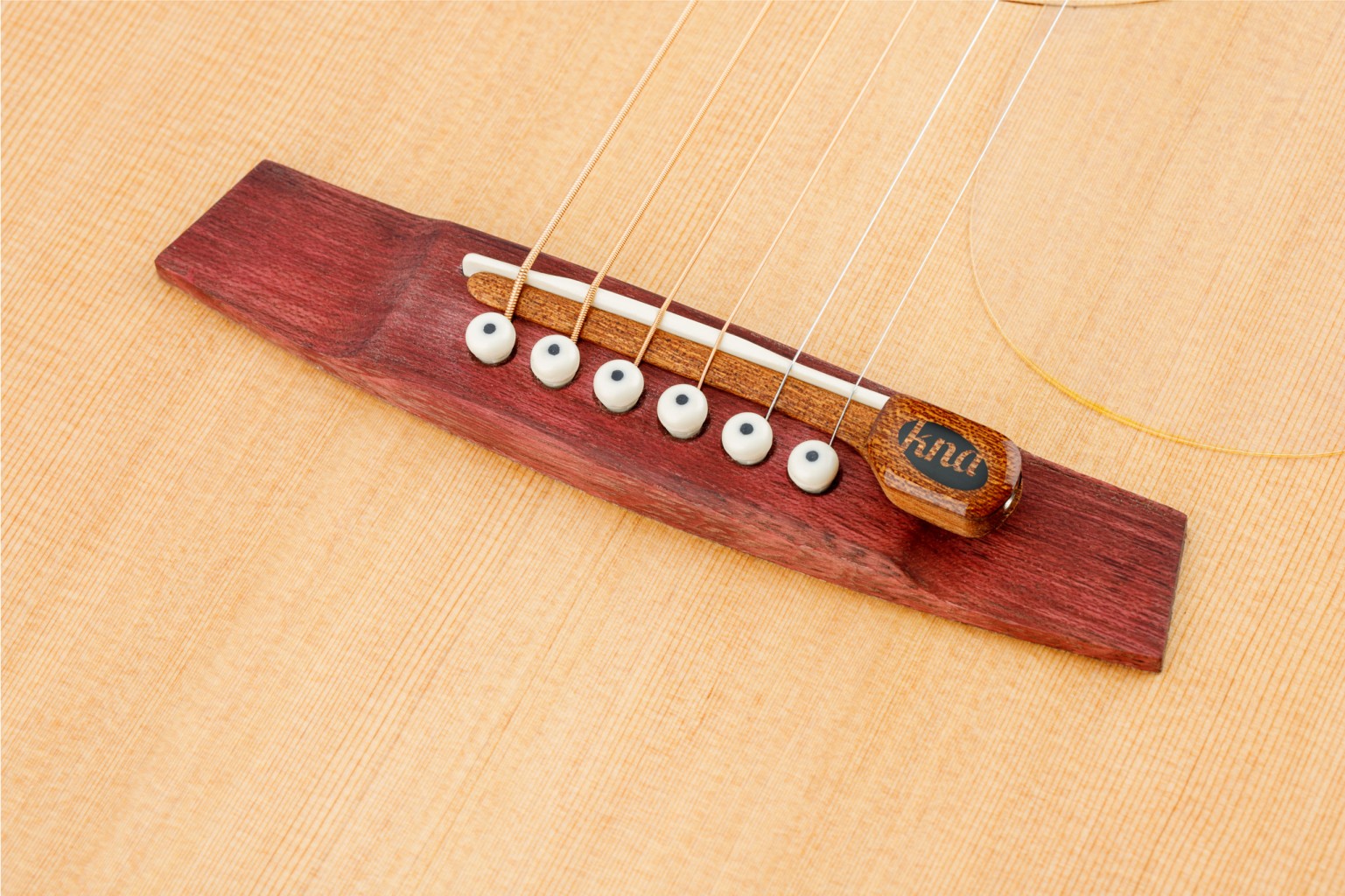

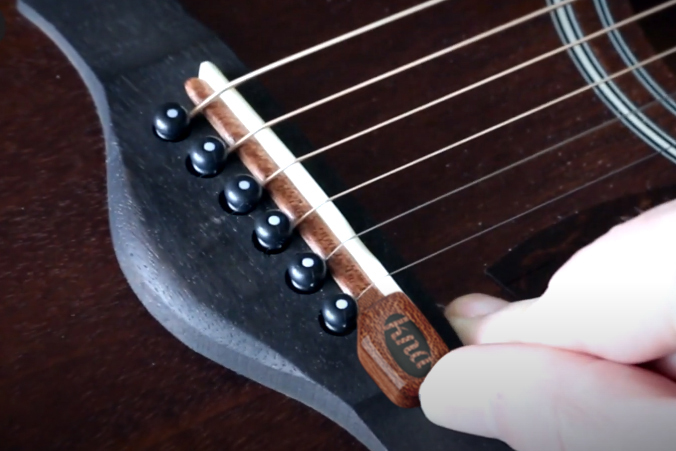

Slide the pickup under the string loops. Keep it positioned evenly on the tie bar while tightening the strings and retune.

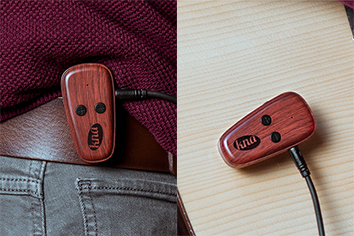

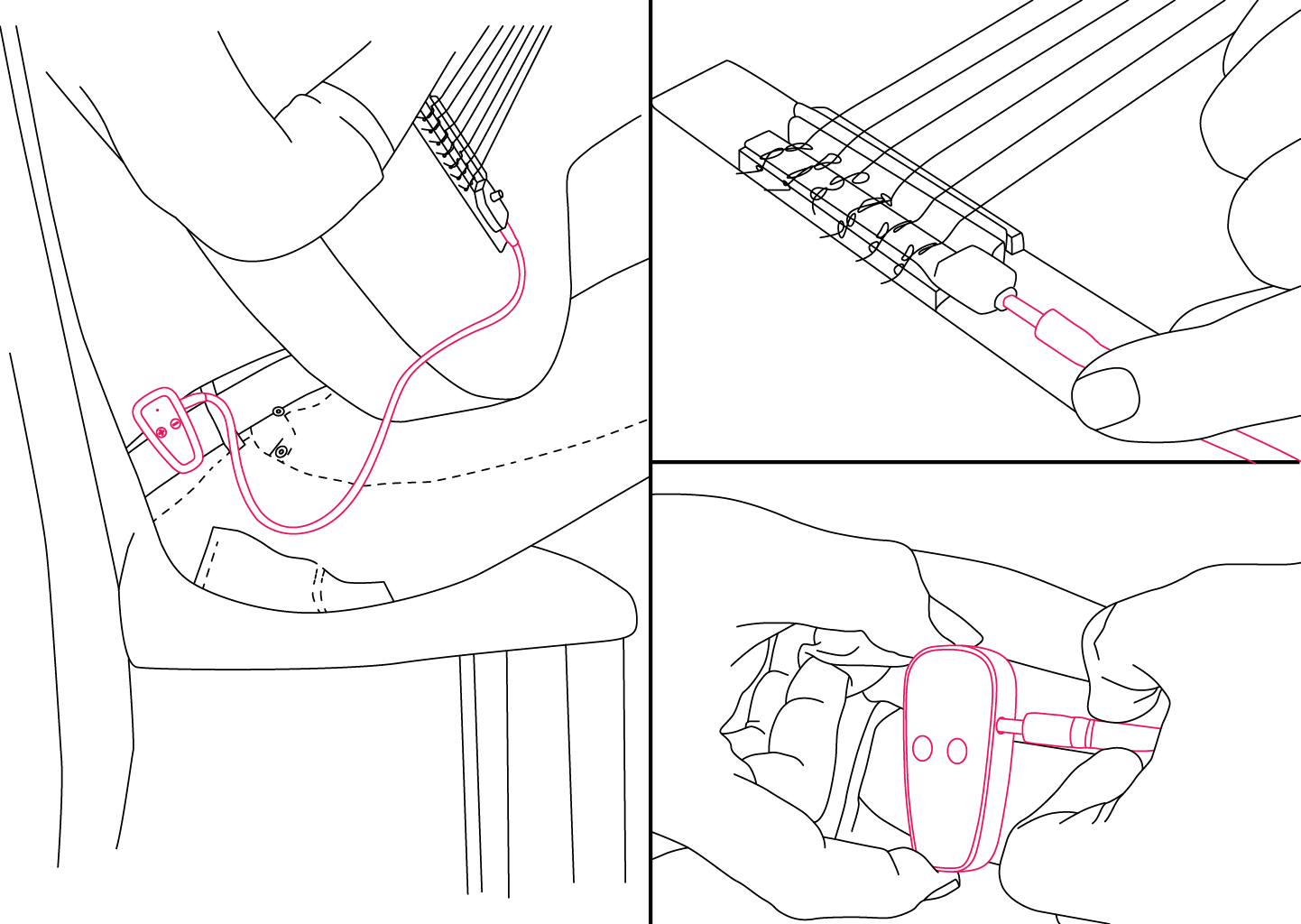

For belt-clip mounting, simply position the transmitter on your belt and secure it using the built-in clip. Connect it to the installed pickup with the included long cable. Be sure to hold the pickup head firmly whenever you plug or unplug the cable.

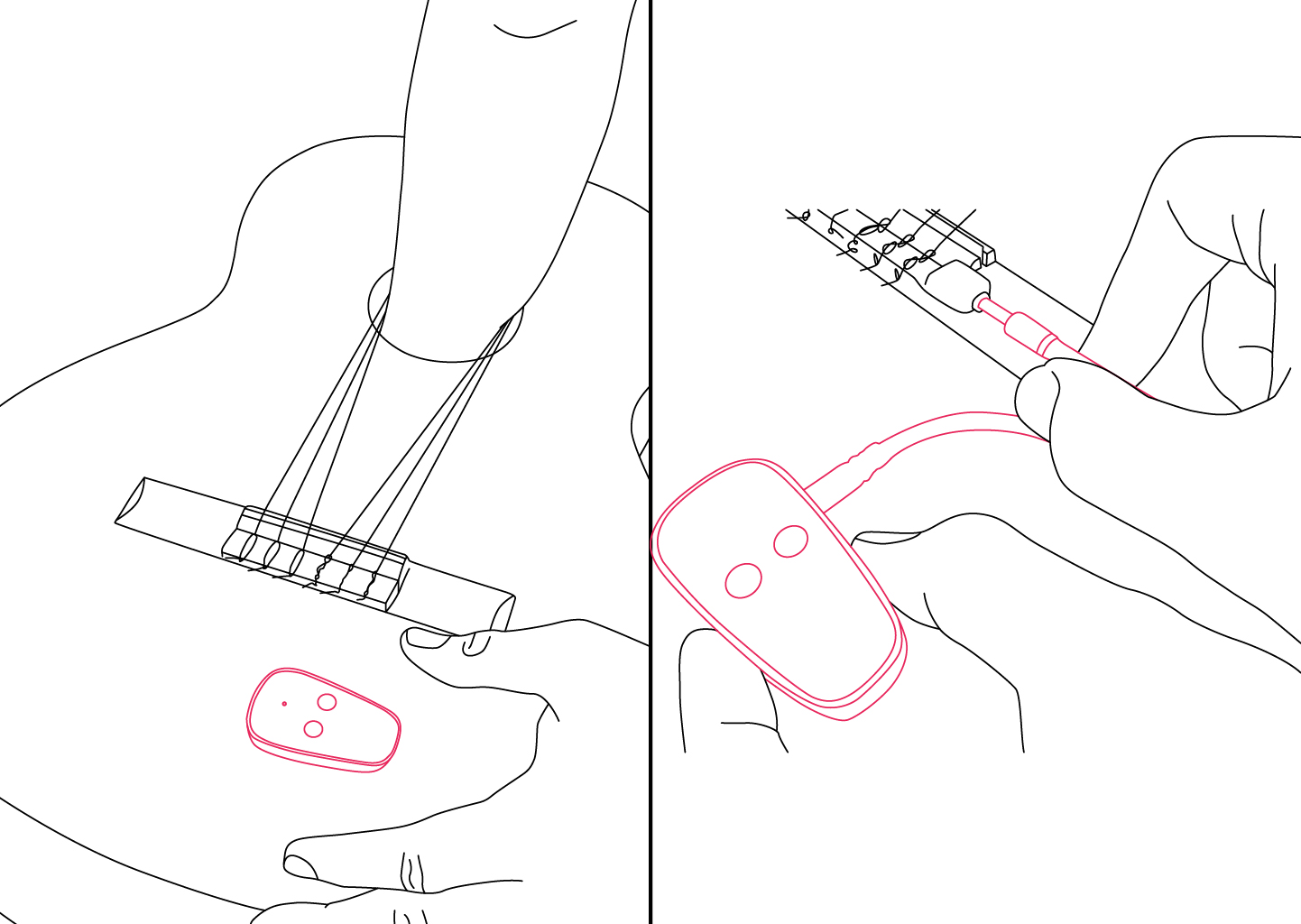

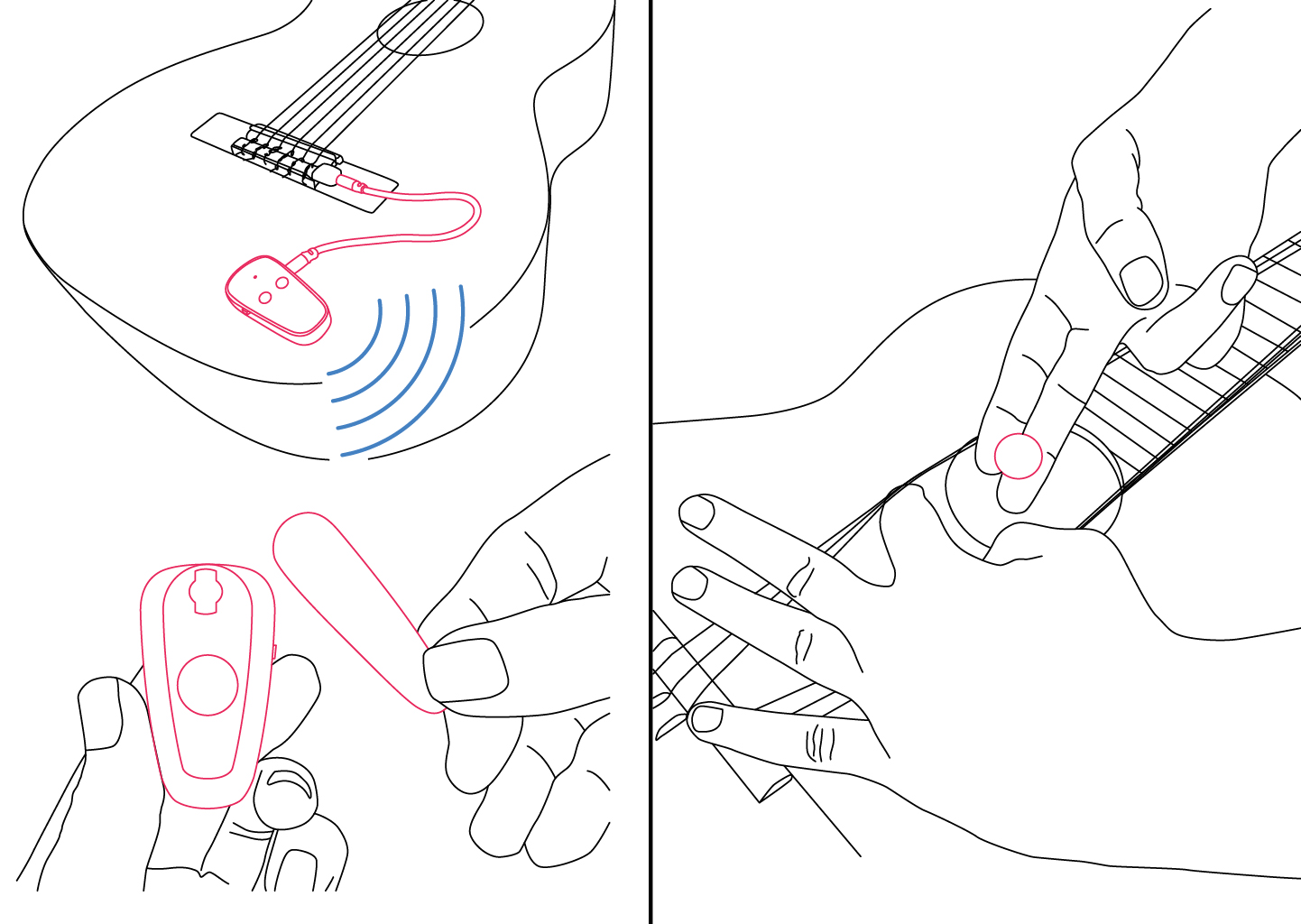

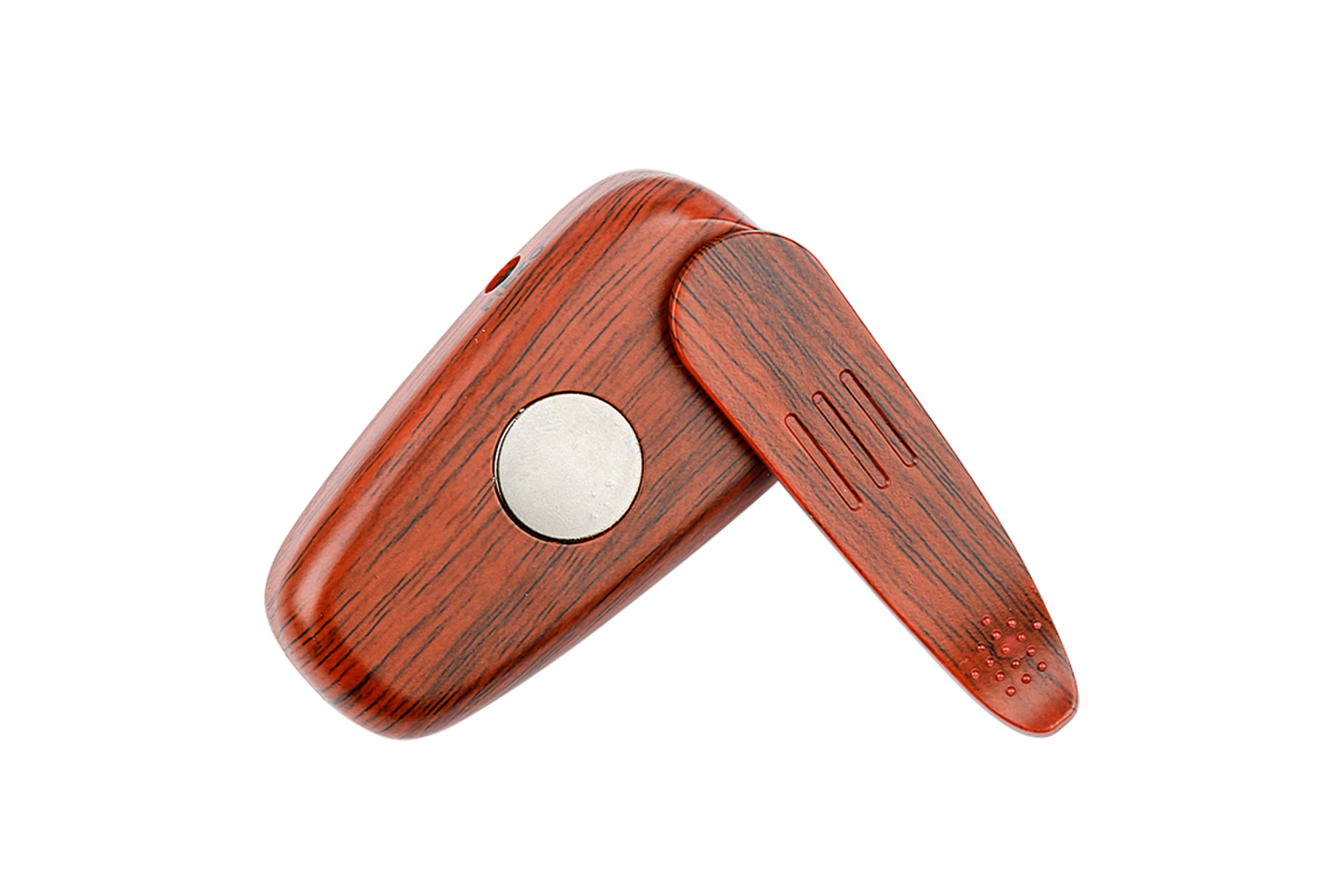

For magnetic mounting, begin by checking the magnet’s polarity and applying the adhesive sticker to the correct side. Remove the belt clip from the transmitter, then position it on your preferred external spot on the instrument. Loosen the strings just enough to fit your hand inside the instrument.

Carefully align the magnet inside the instrument with the transmitter on the outside, then press gently to ensure secure and stable attachment.

Note: The magnet is strong - handle it carefully to prevent it snapping into place unexpectedly or attaching to an unintended area.

Once everything is in place, connect the transmitter to the installed pickup using the included short cable. Once again, make sure you hold the pickup head firmly whenever plugging or unplugging the cable.

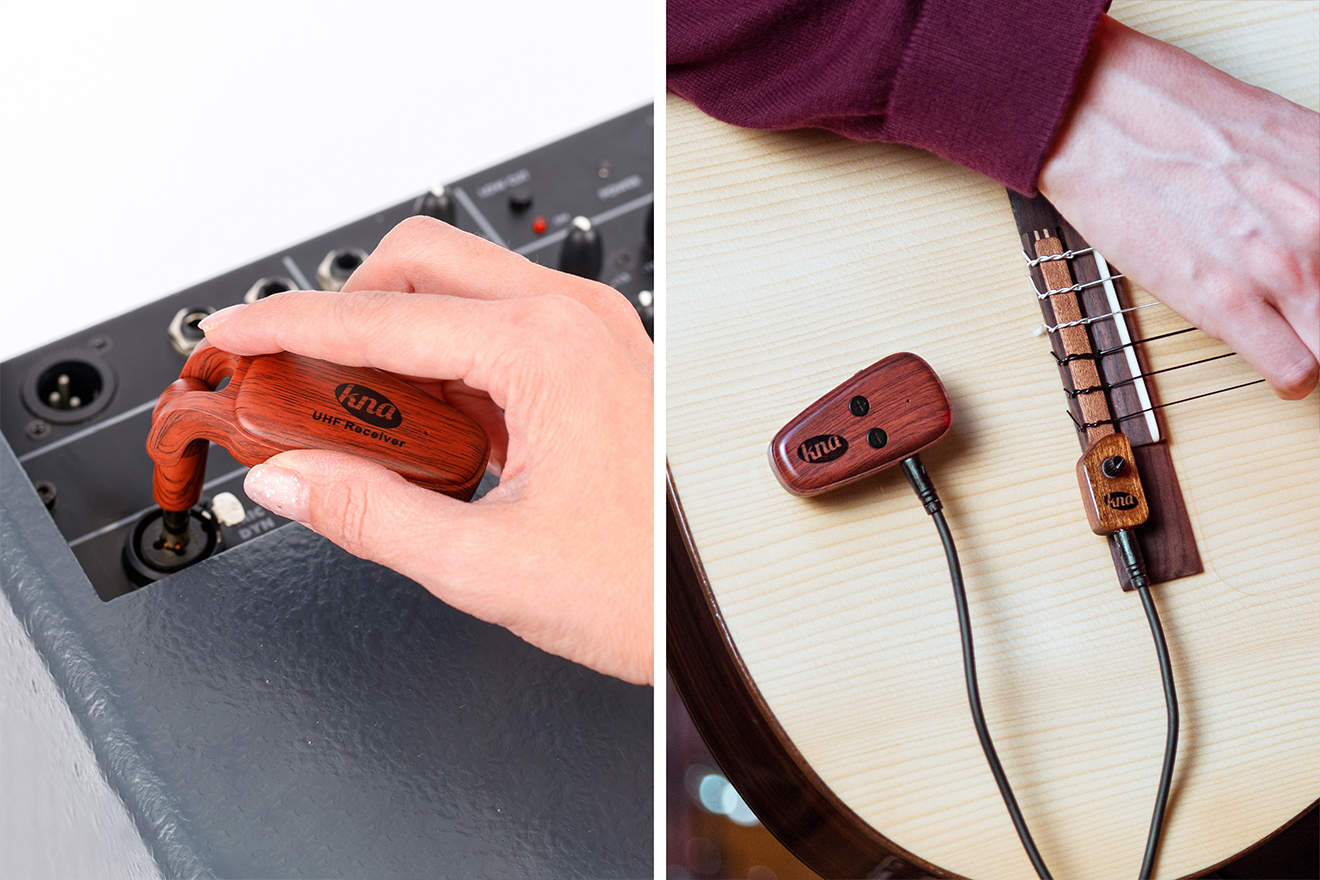

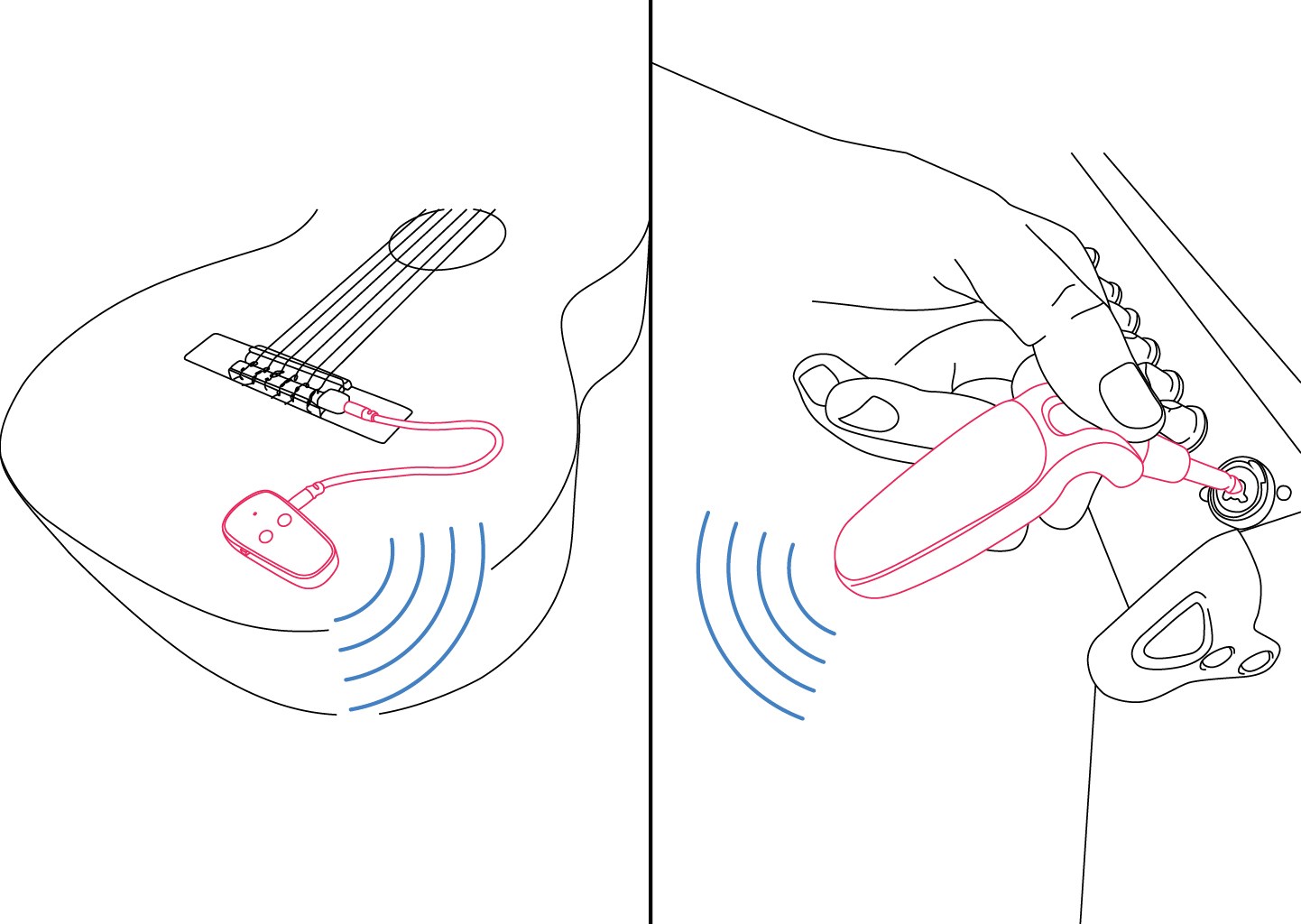

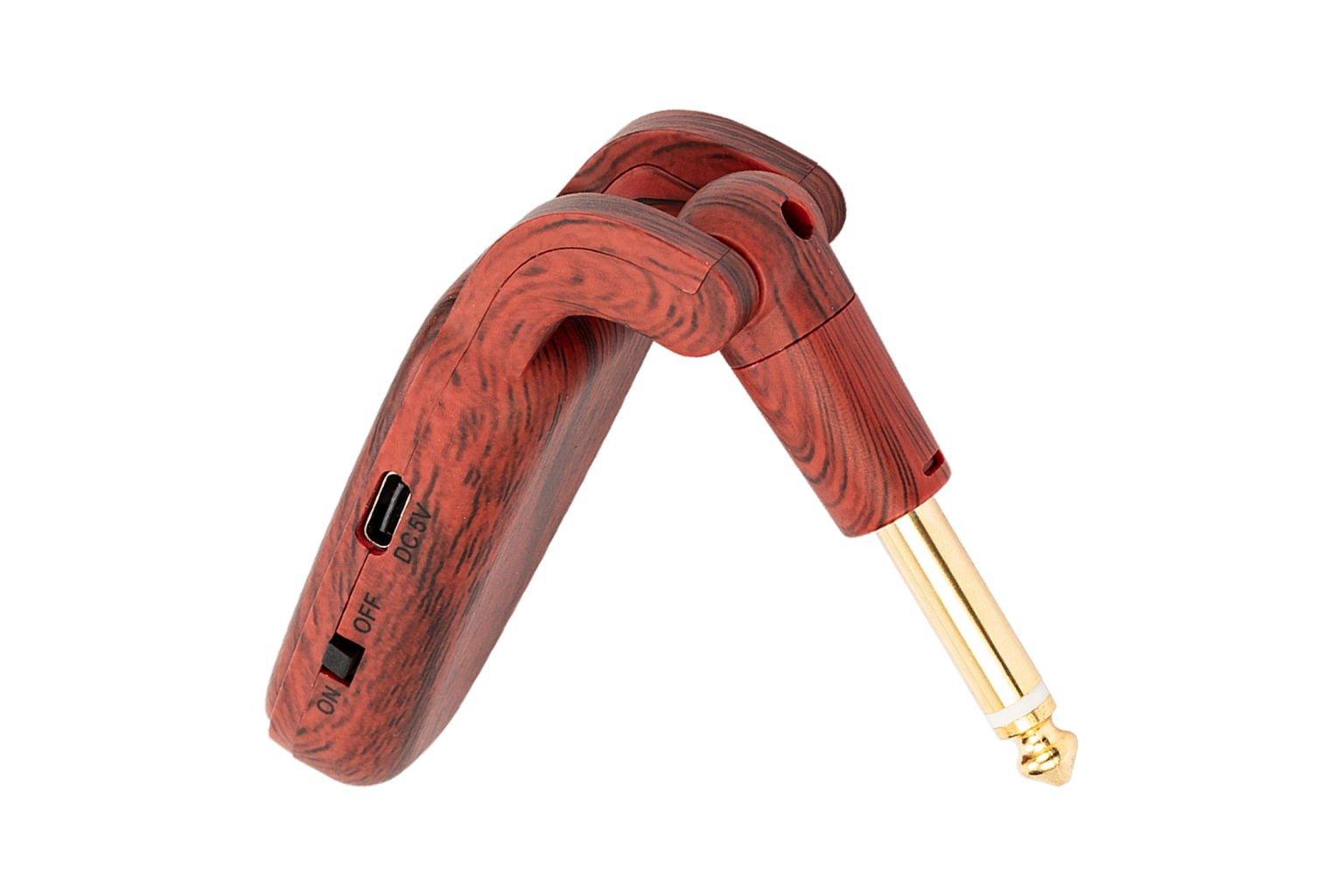

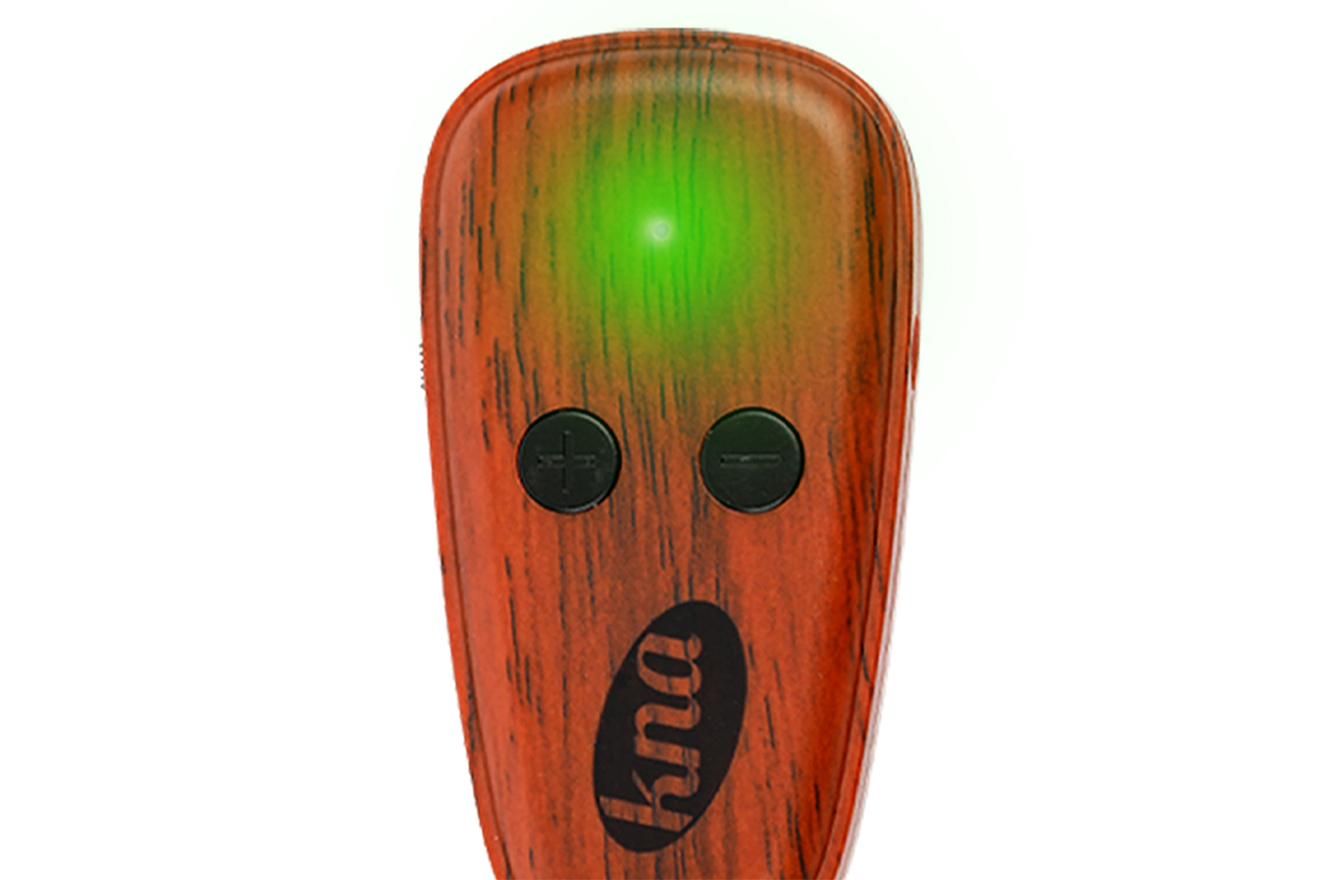

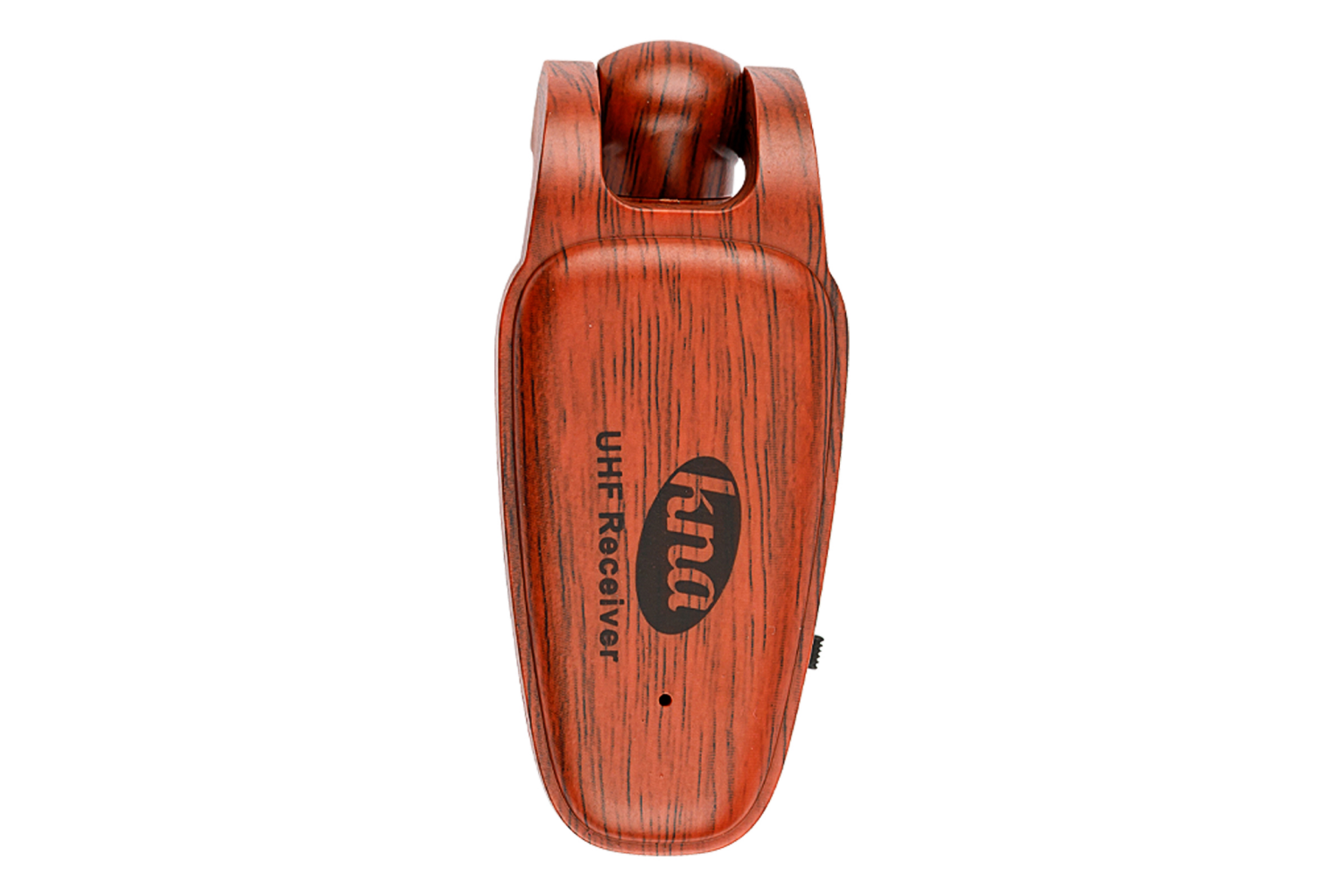

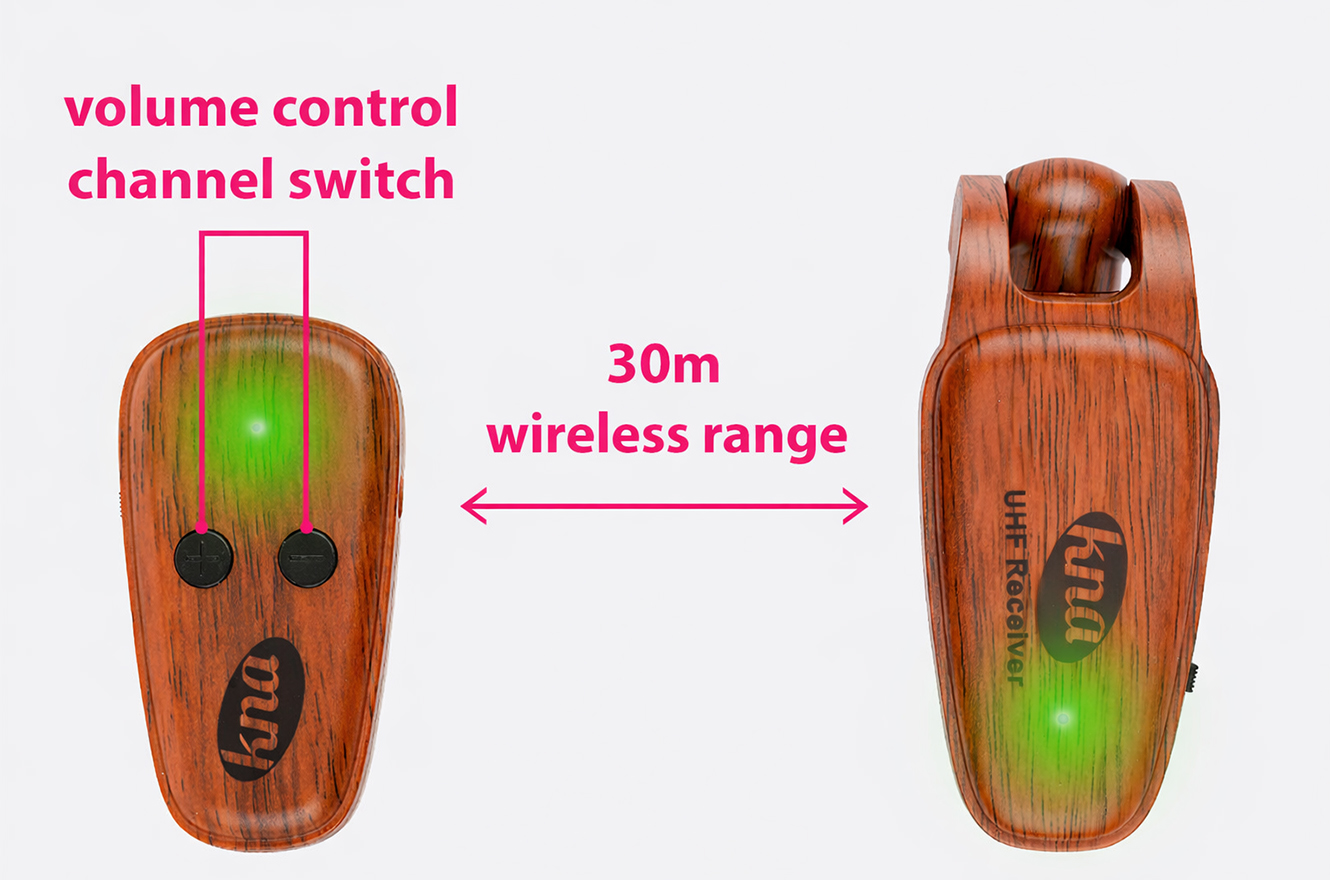

Turn on the transmitter, long press “+” for 5 seconds, and when the green light flashes quickly, that indicates that the pairing status has been entered. Turn on the receiver, and the green light will flash as it’s pairing. When the green light is solid, you’re ready to enjoy your new NG-Wi System.
