SG-1 Pickup
Portable bridge-mounted piezo for steel-string acoustic guitar
Encased in lightweight tonewood, SG-1 is a piezo pickup for guitar that transfers the natural amplified sound of your instrument without requiring modification.
Held in place by the tension of tuned strings, SG-1 is an acoustic guitar bridge pickup that installs safely and securely between the saddle and pins.
Features
Installs with no modification
Held in place by the tension of tuned strings, SG-1 is an acoustic guitar bridge pickup that installs safely and securely between the saddle and pins.
Wood Case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural sound
SG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

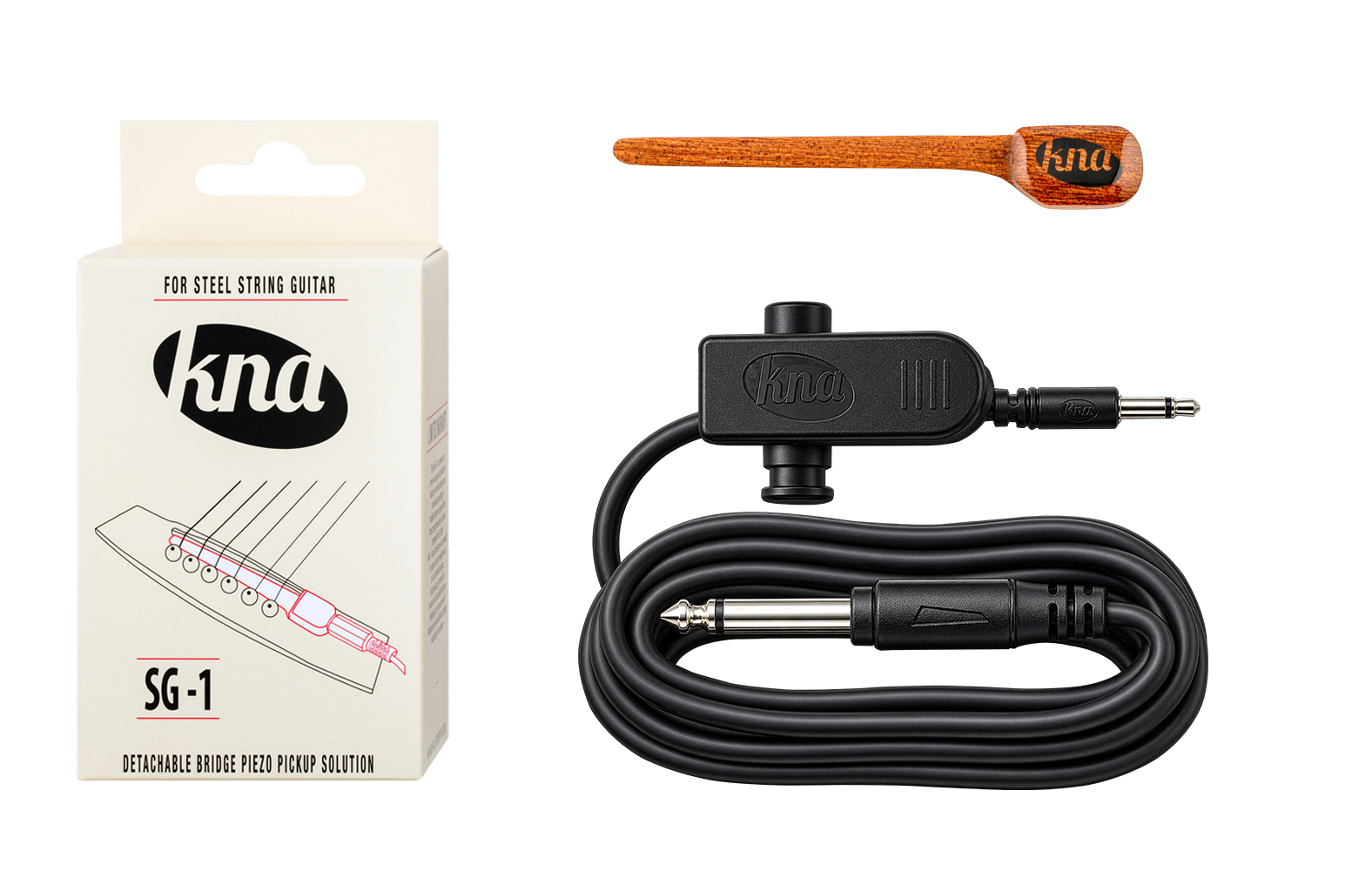

Complete set
Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.
Instructions
Follow our installation guide through the following steps:
Loosen the strings of your guitar. The pickup will be inserted between the bridge pins and the saddle. The bridge saddle should have a minimum of 2.5mm (0.098”) height on the treble side to allow room for pickup placement and for it to function properly.
Starting with the narrow end, slide the pickup between the bridge pins and the saddle. Move the pickup from the treble side up to the bass side until the end rests below the last string.
With the SG-1 in place, tune the instrument normally, making sure the bridge pins remain properly seated.

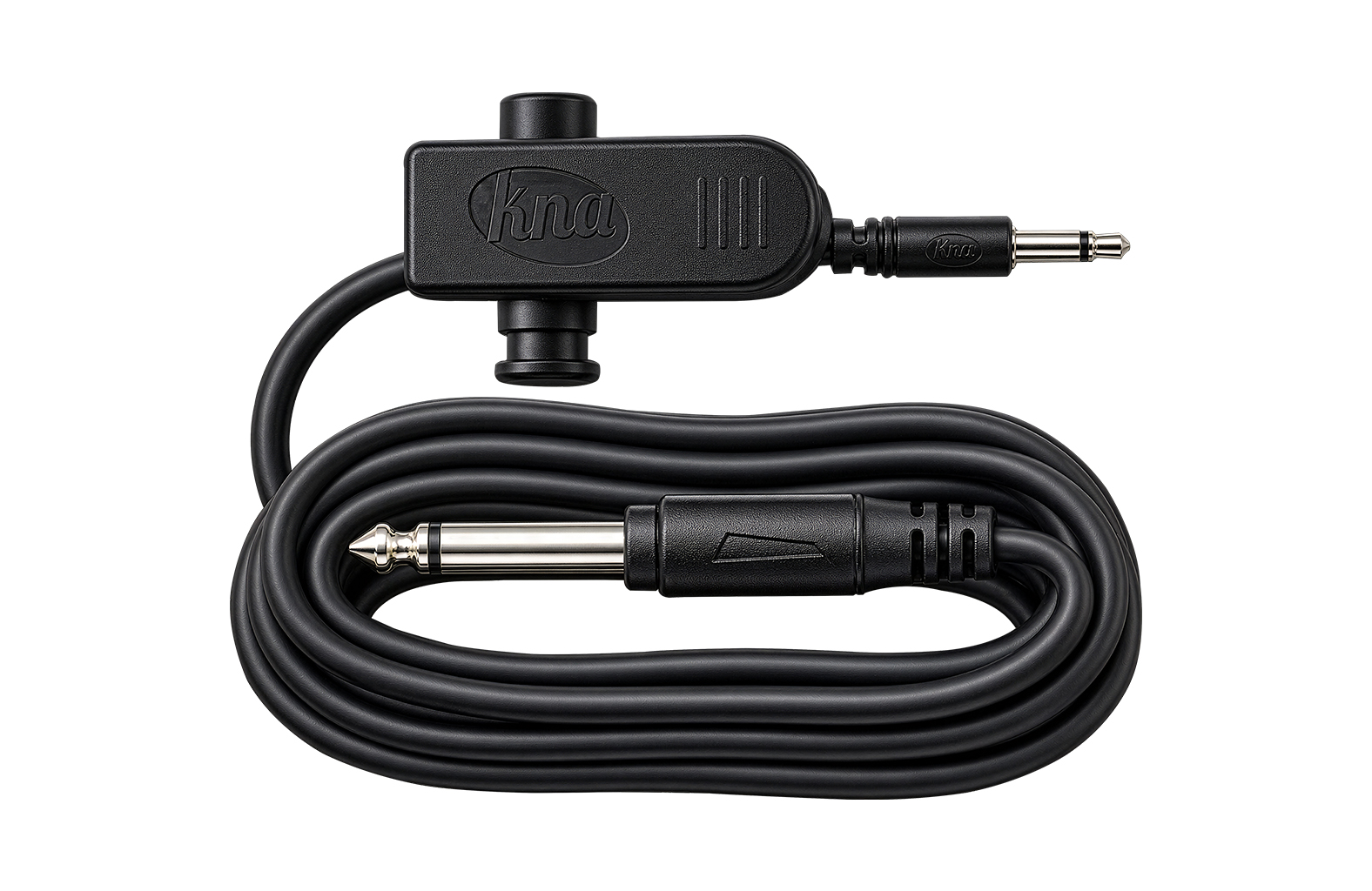

Press the top button to open the safety clip. Insert your instrument cable into the opening and release the button.
Hold the pickup head securely when attaching and detaching the cable.
Attach the clip to a suitable part of your instrument strap, belt or belt loop.The jumper cable and safety clip will protect your pickup from accidental damage caused by the cable pulling on the head of the pickup.
Enjoy your new pickup!
Video review
Specifications
Specifications | |||||
Weight | 3.8g. / 0.137oz | ||||
Wood | Mahogany | ||||
Maximum Impedance | 500 Ω | ||||
Cables | |||||
Jumper cable with safety clip | 1meter / 3' | ||||
Amp cable | 3meter / 9' | ||||
Measurements | |||||
Specified part | Letter | Size in MM (from*) | Size in MM (to*) | Size in INCH (from*) | Size in INCH (to*) |
Transducer length | a | 69,2 | 69,3 | 2,724 | 2,728 |
Jack housing length | b | 17,3 | 17,4 | 0,681 | 0,685 |
Total pickup length | c | 86,2 | 86,3 | 3,394 | 3,398 |
Transducer width at 6th string | d | 4,3 | 4,4 | 0,169 | 0,173 |
Transducer width at 1st string | e | 6,5 | 6,6 | 0,256 | 0,260 |
Active signal transfer area length | f | 60,0 | - | 2,362 | - |
Transducer thickness | g | 1,6 | 1,7 | 0,063 | 0,067 |
Jack housing height | h | 8,9 | 9,0 | 0,350 | 0,354 |
*Our handmade pickups may vary slightly in size due to the nature of the building |
