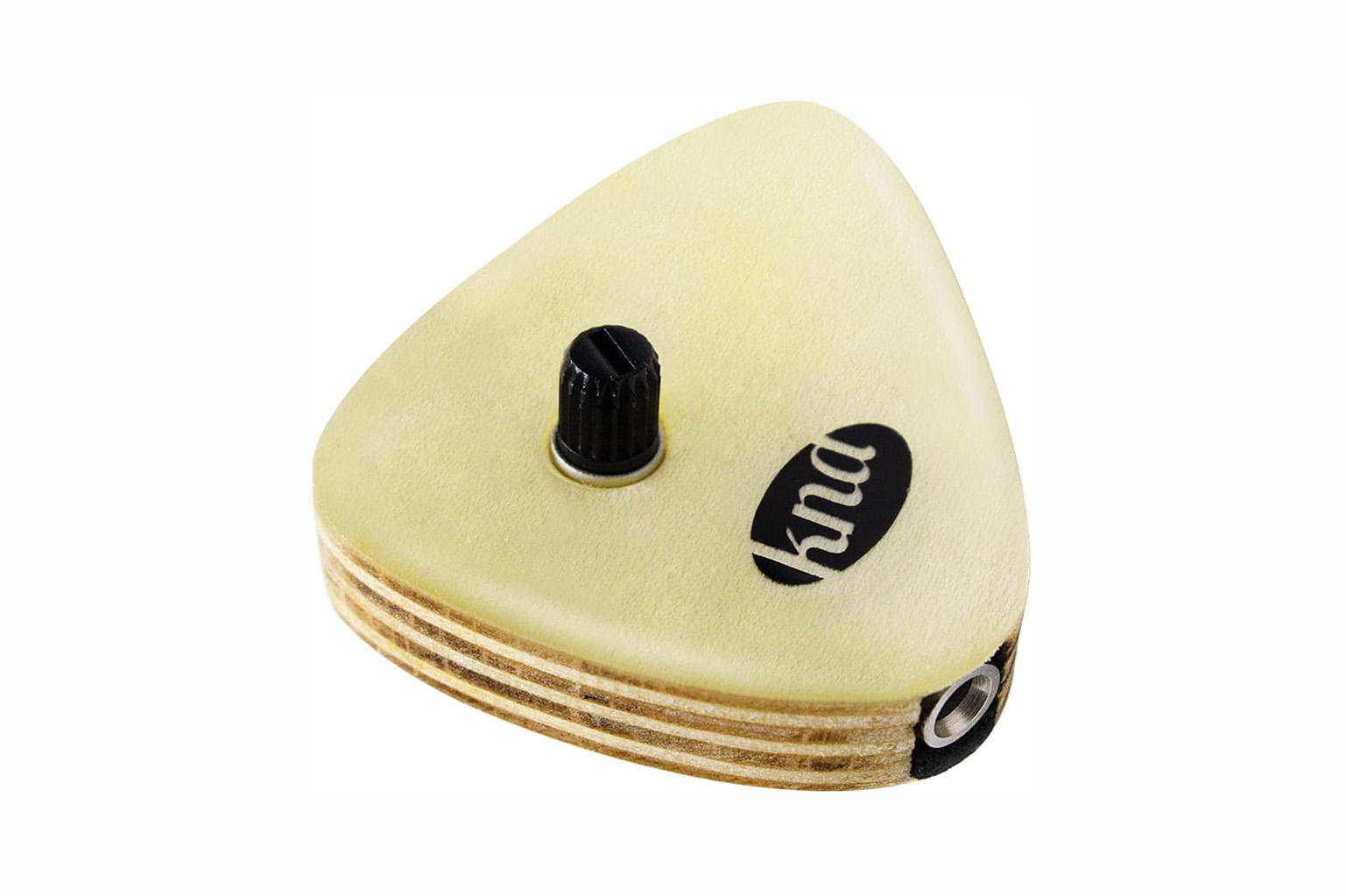

AP-2 PICKUP

Portable surface-mounted piezo with volume control for variety of acoustic instruments


AP-2 is an ideal stick-on guitar pickup for acoustic musicians looking for an easy, effective solution to bring their sound to an amp and control volume from the stage.


In addition to being a surface-mount guitar pickup, AP-2 can be used for harp, drums, and percussion.

Features

Install with no modification

Install with no modification

Simply stick the pickup on your instrument’s soundboard.



Onboard volume control

Onboard volume control

Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

Wooden housing

Wooden housing

The piezo element is encased in laminated birch with an elegant and stylish maple top while retaining lightweight assembly to achieve maximum tonal sensitivity.

Passive design

Passive design

AP-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.



Complete installation set

Complete installation set

The pickup comes with a double-sided adhesive disc and enough PowerTack adhesive for multiple applications, and a detachable 1/8" to 1/4" cable that allows the pickup to remain in place during storage.

Instructions

Follow our installation guide through the following steps:

Video review

Specifications

Specifications
Weight 12.80g / 0.45oz
Wood Laminated birch and maple top
Maximum Impedance 200 Ω
Cable 3meter / 9'
Measurements
Specified part Letter Size in MM (From) Size in MM (to) Size in INCH (From) Size in INCH (to)
Pickup length, side across from jack a 52,1 52,2 2,051

2,055

Pickup length, long side adjacent to jack b 55,0 55,1 2,165 2,169
Pickup length, short side adjacent to jack c 45,0 45,1 1,772 1,776
Pickup length, front to back  d 54,5 54,6 2,146 2,150
Pickup height without potentiometer e 12,0 12,1 0,472 0,476
Pickup height with potentiometer f 17,2 17,2 0,675 0676
Adhesive disk diameter g 20,0 - 0,787 -
Adhesive disk thickness h 1,5 - 0,059 -
*Our handmade pickups may vary slightly in size due to the nature of the building
